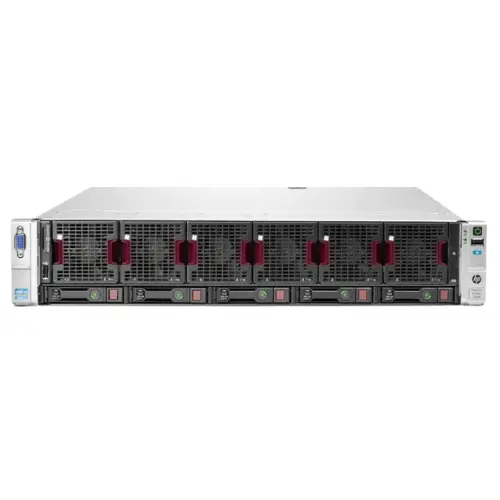

HPE DL560 Gen8 Rack Server
| Brand: HPE |
| Memory: 64GB DDR3 |
| Gpu: Matrox G200 |
| Weight: 14.76 kg |
| Dimensions: 3.44" Height x 17.54" Width x 29.5" Length |
| Cooling options: Active Cool Fans |
| Fans: six hot-plug fan modules |
Product Description
Specification
| Brand | HPE |
| Model | HPE DL560 Gen8 Server |
Product Type
| Product type | Server |
Form Factor
| Form Factor | Rack-mountable - 2U |
Processor
| CPU Information | Intel® E5-4600 and E5-4600v2 Processor Family CHIPSET Intel® C600 Series Chipset Upgradeable to 4 processors (32 Cores with E5-4600; 48 Cores with E5-4600v2) Supported Processors E5-4600 v2 series Processors Twelve-Core Processors Intel® Xeon® E5-4657L v2 (2.4GHz/12-core/30MB/115W) Processor Ten-Core Processors Intel® Xeon® E5-4650 v2 (2.4GHz/10-core/25MB/95W) Processor Intel® Xeon® E5-4640 v2 (2.2GHz/10-core/20MB/95W) Processor Eight-Core Processors Intel® Xeon® E5-4627 v2 (3.3GHz/8-core/16MB/130W) Processor Intel® Xeon® E5-4620 v2 (2.6GHz/8-core/20MB/95W) Processor Intel® Xeon® E5-4610 v2 (2.3GHz/8-core/16MB/95W) Processor Six-Core Processors Intel® Xeon® E5-4607 v2 (2.6GHz/6-core/15MB/95W) Processor Four-Core Processors Intel® Xeon® E5-4603 v2 (2.2GHz/4-core/10MB/95W) Processor E5-4600 series Processors Eight-Core Processors Intel® Xeon® E5-4650 (2.7GHz/8-core/20MB/130W) Processor Intel® Xeon® E5-4650L (2.6GHz/8-core/20MB/115W) Processor Intel® Xeon® E5-4640 (2.4GHz/8-core/20MB/95W) Processor Intel® Xeon® E5-4620 (2.2GHz/8-core/16MB/95W) Processor Six-Core Processors Intel® Xeon® E5-4617 (2.9GHz/6-core/15MB/130W) Processor Intel® Xeon® E5-4610 (2.4GHz/6-core/15MB/95W) Processor Intel® Xeon® E5-4607 (2.2GHz/6-core/12MB/95W) Processor Four-Core Processors Intel® Xeon® E5-4603 (2.0GHz/4-core/10MB/95W) Processor Cache Memory One of the following depending on model 30MB Level3 NOTE: E5-4657L v2 processor 25MB Level3 NOTE: E5-4650 v2 processor 20MB Level3 NOTE: E5-4650, E5-4650L, E5-4640, E5-4640 v2, E5-4620 v2 processors 16MB Level3 NOTE: E5-4620, E5-4610 v2, E5-4627 v2 processors 15MB Level3 NOTE: E5-4617, E5-4610, E5-4607 v2 processors 12MB Level3 NOTE: E5-4607 processor 10MB Level3 NOTE: E5-4603, E5-4603 v2 processors |
Memory
| Installed Memory | 64GB DDR3 |
| Memory Type | Up to 48 DIMM slots available for higher Memory capacity Type HPE SmartMemory DDR3 Load Reduced (LRDIMM), Registered (RDIMM) DIMM Slots Available 48 (12 DIMM slots per processor /4 channels per processor/3 DIMMs per channel) Maximum Capacity (RDIMM) 1.5TB (48x 32GB RDIMM @1600MHz) (LRDIMM) 1.5TB (48x 32GB LRDIMM @ 1866MHz) |
Hard Disk
| Storage Option | HPE Smart Array P420i/ZM (RAID 0/1/1+0) Maximum Internal Storage Hot Plug SFF SAS 10.0TB 5 x 2.0TB Hot Plug SFF SAS SSD 19.2TB 5 x 3.84T Hot Plug SFF SATA 10.0TB 5 x 2.0TB Hot Plug SFF SATA SSD 19.2TB 5 x 3.84GB |
| Installed Hard Disk | HDD SAS 2.5 |
GRAPHICS CONTROLLER
| Display Adapter | Integrated Matrox G200 video standard • 1280 x 1024 (32 bpp) • 1920 x 1200 (16 bpp) HPE iLO 4 On System Management Memory • 16 MB Flash • 256 MB DDR 3 with ECC (112 MB after ECC and video) |
EXPANSION / CONNECTIVITY
| Expansion Slots | INTERFACES Serial 1 Video 2 (1 front, 1 back) not active simultaneously FlexibleLOM Network Ports Some models come standard with 4 x 1GB ports while others come with 2 x 10GB ports (See HPE Networking section below for more details and options). HPE iLO Remote Management Network Port 1 Gb Dedicated Micro SD slot 1 Internal Secure USB 2.0 Ports 7 total: 2 front, 4 back, 1 internal SYSTEM FANS 6 fans (N+1 redundancy standard) Primary Riser (Standard) expansion Slot # Technology Bus Width Connector Width Bus Number Form Factor 1 PCIe 3.0 X16 X16 7 Full Length, Full Height Slot Proc 1 2 PCIe 3.0 X8 X8 10 Half Length, Full Height Slot Proc 1 3 PCIe 2.0 X4 X8 13 Half Length, Full Height Slot Chipset PCIe Riser (Optional 3-slot) 4 PCIe 3.0 X16 X16 16 Full Length, Full Height slot 5 PCIe 3.0 X8 X8 20 Half Length, Full Height slot 6 PCIe 3.0 X8 X8 23 Half Length, Full Height slot PCIe Riser (Optional 2-slot) 4 PCIe 3.0 X16 X16 16 Full Length, Full Height slot 5 PCIe 3.0 X16 X16 20 Half Length, Full Height slot |
NETWORKING
| Ports | HPE Ethernet 1Gb 4-port 331FLR Adapter |
POWER
| Power Options | Type power supply Min Operating Temperature 41 °FNominal VoltageAC 120/230 V (50/60 Hz) Max Operating Temperature95 °F |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 3.44" (8.74 cm) Height x 17.54" (44.55 cm) Width x 29.5" (74.94 cm) Length |
| Weight | 14.76 kg |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Type no operating system OS Provided No operating system |
