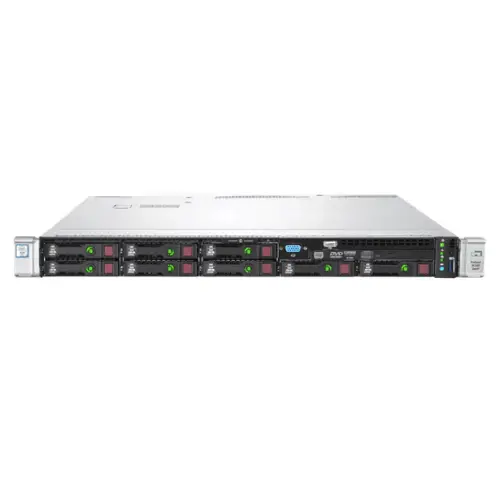

HPE DL360 Gen9 Rack Server
| Brand: HPE |
| Processor: Intel® Xeon® processor E5-2600 v3 |
| Memory: 64GB DDR4 |
| Graphic Card: Integrated Matrox G200 |
| Dimensions: 3.44 x 17.54 x 26.75 |
| GHz: 3.0 |
Product Description
Specification
| Brand | HPE |
| Model | HPE DL360 Gen9 Server (Refurbished) |
| Part Number | DL360 Gen9 |
Product Type
| Product type | Server |
Form Factor
| Form Factor | Rack-mountable - 1U |
Processor
| CPU Information | Intel® Xeon® processor E5-2600 v3 and E5-2600 v4 product families CPU Intel Xeon E5-2650 V3 Installed Qty 2 Max Supported Qty 2 Processor Base Frequency 2.3 GHz Max Turbo Frequency 3.0 GHz Number of Cores 20 Total Threads 40 64-bit Computing Yes Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ Yes Processor Socket FCLGA2011-3 Socke Intel C610 Series chipset CACHE MEMORY 50 MB Intel® Smart Cache Cache Per Processor 25 MB PROCESSOR CORE AVAILABLE 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4 |
Memory
| Installed Memory | 64GB DDR4 |
| Memory Type | Configuration Features 4 x 16 GB 2133 MHz Form Factor DIMM 288-pin Memory type: DDR4 SmartMemory Features Registered, Online Spare Memory, Quad channel memory architecture, HP SmartMemory 12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel) Maximum Capacity (LRDIMM) 3TB (24 x 128GB LRDIMM @2400MHz) 4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s |
Hard Disk
| Storage Option | Hard Drives: Up to 4x 3.5" SAS/SATA HDD/SSD drives Up to 8x 2.5" SAS/SATA HDD/SSD drives Up to 10x 2.5" SAS/SATA HDD/SSD drives RAID Level RAID 0,RAID 1,RAID 5,RAID 6,RAID 10,RAID 50,RAID 60,RAID 1 ADM,RAID 10 ADM Maximum Internal Storage: 4x 3.5" - Up to 56TB (NL-SAS/SATA) / 2.4TB (SAS) / 61.2TB (SSD) 8x 2.5" - Up to 16TB (NL-SAS/SATA) / 19.2TB (SAS) / 122.4TB (SSD) 10x 2.5" - Up to 20TB (NL-SAS/SATA) / 24TB (SAS) / 153TB (SSD) Storage controller Entry models HPE Dynamic Smart Array B140i Controller Base models HPE H240ar Smart Host Bus Adapter Performance models HPE Flexible Smart Array P440ar/2GB |
| Installed Hard Disk | 2 x 600GB HDD SAS 2.5 |
GRAPHICS CONTROLLER
| Display Adapter | Graphics Integrated Matrox G200 video standard 1280 x 1024 (32 b/p) 1920 x 1200 (16 b/p) |
EXPANSION / CONNECTIVITY
| Expansion Slots | Dedicated iLO 4 connector Serial Port Connector (Optional) USB 3.0 Connectors (2) |
| Compatible Slots | UP to 3 PCIe slots |
NETWORKING
| Ports | 1Gb 331i Ethernet Adapter 4 Ports per controller |
POWER
| Power Options | HPE 500W Flex Slot Platinum Hot Plug Power Supply Type power supply - hot-plug Power Redundancy yes Power Redundancy Scheme 1+1 Installed Qty 2 Max Supported Qty 2 Min Operating Temperature 50 °F Max Operating Temperature 95 °F |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 3.44 x 17.54 x 26.75 in |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Type no operating system OS Provided No operating system |
