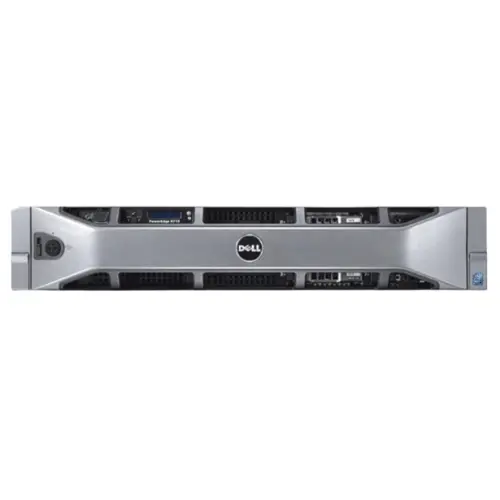

DELL PowerEdge R820 Rack Server
| Brand: Dell |
| Processor: Intel Xeon |
| Memory: 64GB DDR3 |
| Gpu: Integrated Display Adapter |
| Weight: 29.5 kg |
| Dimensions: Length (depth): 31inches, Width: 17inches, Height: 3.41inches |
| Cooling options: air cooling |
| Fans: 6x Hot-swappable, redundant fans |
Product Description
Specification
| Brand | Dell |
| Model | Dell PowerEdge R820 Rack Server |
| Part Number | PowerEdge R820 |
Product Type
| Product type | Server |
Form Factor
| Form Factor | Rack-mountable - 2U |
Processor
| CPU Information | Processor Intel® Xeon® processor E5-4600 product family Processor sockets: 4 Internal interconnect: 2 x Intel QuickPath Interconnect (QPI) links; 6.4 GT/s; 7.2 GT/s; 8.0 GT/s Cache: 2.5MB per core; core options: 4, 6, 8 Total Cores 8 Total Threads 16 Max Turbo Frequency 3.30 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.30 GHz Processor Base Frequency 2.70 GHz Cache 20 MB Intel® Smart Cache Bus Speed 8 GT/s # of QPI Links 2 TDP 130 W Form factor: 2U rack Chipset Intel C602 |
Memory
| Installed Memory | 64GB DDR3 |
| Memory Type | Up to 3TB (48 DIMM slots) 4GB/8GB/16GB/32GB/64GB DDR3 up to 1866MT/s |
Hard Disk
| Storage Option | Storage Maximum internal storage 16TB Hot-plug hard drive options: 2.5" PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K), SAS 512e (15K) Self-Encrypting drives available |
| Installed Hard Disk | 4 x 600GB SAS Hard Drive |
GRAPHICS CONTROLLER
| Display Adapter | Integrated Display Adapter |
EXPANSION / CONNECTIVITY
| Expansion Slots | Slots 7 PCIe slots: Two x16 half-length, full-height One x8 half-length, full-height Three x8 half-length, half-height One x8 half-length, full-height for the RAID controller |
NETWORKING
| Ports | Broadcom® 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload) |
| Connectivity Technology | Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload) |
POWER
| Power Options | Power Supplies: 2x 1100W PSU for Dell R2 Servers 2x 1100W PSU for Dell R2 Servers or Titanium efficiency, hot-plug redundant 750W power supply Platinum efficiency, hot-plug redundant 750W or 1100W power supplies Auto-ranging power supplies |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | Length (depth): 31” (777.6 mm) Width: 17” (434 mm) Height: 3.41” (86.8mm) |
| Weight | Weight: 29.5 kg (65 lbs) |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Type Contact Chat Support about Operating System |
