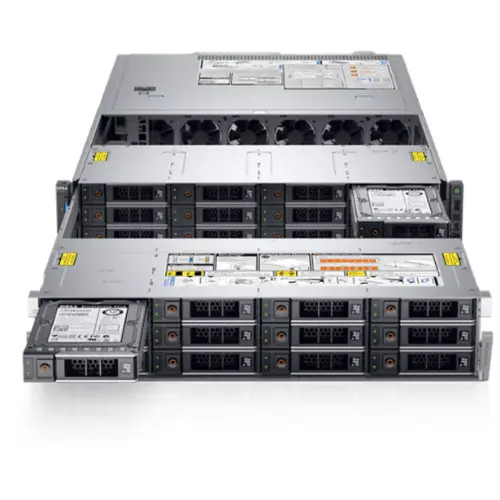

DELL PowerEdge R740xd2 Rack Server
| Brand: Dell |
| Processor: Intel Xeon |
| Memory: 64GB DDR4 |
| Gpu: Integrated Display Adapter |
| Weight: 28.6kg |
| Dimensions: Height: 3.4inches, Width: 17.08inches, Depth: 29.03inches |
| Cooling options: redundant air cooling system |
| Fans: Six (6) hot-pluggable, redundant system fans |
Product Description
Specification
| Brand | Dell |
| Model | Dell PowerEdge R740xd2 Rack Server |
Product Type
| Product type | Server |
Form Factor
| Form Factor | 2U Rackable |
Processor
| CPU Information | Single Intel® Xeon® 6138 Gold with up to 28 cores per processor Intel® Xeon® Gold 6138 Processor (27.5M Cache- 2.00 GHz) Essentials Product Collection Intel® Xeon® Scalable Processors Code Name Products formerly Skylake Vertical Segment Server Processor Number 6138 Lithography 14 nm Use Conditions Server/Enterprise CPU Specifications Total Cores 20 Total Threads 40 Max Turbo Frequency 3.70 GHz Processor Base Frequency 2.00 GHz Cache 27.5 MB L3 Cache Max # of UPI Links 3 TDP 125 W Supplemental Information Marketing Status Launched Launch Date Q3'17 Servicing Status ESU Notification Issued End of Servicing Updates Date Sunday | December 31 | 2023 End of Interactive Support Date Sunday | December 31 | 2023 Embedded Options Available Yes Datasheet View now Product Brief View now Additional Information View now Memory Specifications Max Memory Size (dependent on memory type) 768 GB Memory Types DDR4-2666 Maximum Memory Speed 2666 MHz Max # of Memory Channels 6 ECC Memory Supported ‡ Yes Expansion Options Scalability S4S PCI Express Revision 3 Max # of PCI Express Lanes 48 Package Specifications Sockets Supported FCLGA3647 TCASE 86°C Package Size 76.0mm x 56.5mm Advanced Technologies Intel® Optane™ Memory Supported ‡ No Intel® Speed Shift Technology Yes Intel® Turbo Boost Max Technology 3.0 ‡ No Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions Yes Intel® 64 ‡ Yes Instruction Set Extensions Intel® AVX-512 # of AVX-512 FMA Units 2 Enhanced Intel SpeedStep® Technology Yes Intel® Volume Management Device (VMD) Yes Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Run Sure Technology Yes Mode-based Execute Control (MBEC) Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes |
Memory
| Installed Memory | 64GB DDR4 |
| Memory Type | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Up to 12 Intel® Optane™ DC persistent memory PMem, 6.14TB max (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only |
Hard Disk
| Storage Option | Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA Software RAID: S140 Boot Optimized StorageSubsystem (BOSS): HW RAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module1 |
| Installed Hard Disk | 2 x 600GB SAS Hard Drive |
GRAPHICS CONTROLLER
| Display Adapter | Integrated Display Adapter Accelerators Up to one single-width FPGA Up to three single-width GPU (NVIDIA T4) |
EXPANSION / CONNECTIVITY
| Expansion Slots | Network daughter card options 4 x 1GbE or 2 x 10GbE + 2 x 1GbE or 4 x 10GbE or 2 x 25GbE Front ports: 1 x Dedicated iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x USB 3.0 (optional), 1 x VGA Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x VGA Video card: 2 x VGA Riser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots |
NETWORKING
| Ports | Broadcom® 5720 |
POWER
| Power Options | Titanium 750W, Platinum 495W, 750W, 750W 240VDC,2 1100W, 1100W 380VDC2 600W, 2000W and 2400W, Gold 1100W -48VDC Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | Height: 86.8mm (3.4”) Width3: 434.0mm (17.08”) Depth3: 737.5mm (29.03”) |
| Weight | Weight: 28.6kg (63lbs.) |
OPERATING SYSTEM
| Pre Install Os | No OS |
