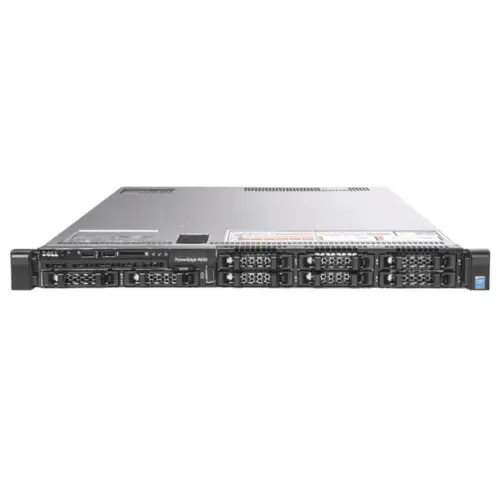

DELL PowerEdge R630 1U Rack Server
| Brand: Dell |
| Processor: Intel Xeon |
| Memory: 64GB DDR4 |
| Gpu: Matrox G200eR2 |
| Dimensions: Height: 1.68 inches, Width: 17.08 inches, Depth: 27.26 inches |
| Cooling options: Active air cooling |
| Fans: 6 hot-swappable, redundant fans |
Product Description
Specification
| Brand | Dell |
| Model | Dell PowerEdge R630 Rack server |
| Part Number | Dell PowerEdge R630 |
Product Type
| Product type | Server |
Form Factor
| Form Factor | 1U Rack Server |
Processor
| CPU Information | Intel® Xeon® Processor E5 v3 Family CPU Intel Xeon E5-2650 V3 Installed Qty 2 Max Supported Qty 2 Processor Base Frequency 2.3Ghz Max Turbo Frequency 3.0 GHz Number of Cores 20 64-bit Computing Yes Intel® Turbo Boost Technology ‡ 2.0 Intel® Hyper-Threading Technology ‡ Yes Processor Socket FCLGA2011-3 Socke Intel C610 series chipset CACHE MEMORY 50 MB Intel® Smart Cache Cache Per Processor 25 MB |
Memory
| Installed Memory | 64GB DDR4 |
| Memory Type | Max Memory Supported Up to 1.5TB (24 DIMM Slots 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s |
Hard Disk
| Storage Option | HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, NVMe PCIe 24 x 1.8” SSD – up to 23TB via 0.96TB hot-plug SATA SSD 10 x 2.5” – up to 18TB via 1.8TB hot-plug SAS HDD 8 x 2.5” – up to 14TB via 1.8TB hot-plug SAS HDD |
| Installed Hard Disk | HDD SAS 2.5 |
GRAPHICS CONTROLLER
| Display Adapter | integrated |
EXPANSION / CONNECTIVITY
| Expansion Slots | Slots 2 CPUs, 3 slots Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector) Slot 2: Half length, half height - PCIe 3.0 x8 (x16 connector) Slot 3: Half length, half height - PCIe 3.0 x16 (x16 connector) 2CPUs, 2 slots Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector) Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector) 1CPU, 2 slots Slot 1: Half length, half height - PCIe 3.0 x8 (x16 connector) Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector Dedicated RAID card slot |
NETWORKING
| Ports | Embedded NIC 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb |
| Features | Broadcom 5720 QP 1Gb Network Daughter Card 1 ZR |
POWER
| Power Options | Titanium efficiency 750W AC power supply; Dual, Hot-plug, Redundant Power Supply Installed Qty 2 Max Supported Qty 2 Min Operating Temperature 50 °F Max Operating Temperature 95 °F |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 24 x 1.8" and 10 x 2.5" drive configuration: H: 4.28 cm (1.68 in), W: 48.23 cm (18.98 in), D: 75.51 cm (29.72 in) 8 x 2.5" drive configuration: H: 4.28 cm (1.68 in), W: 48.23 cm (18.98 in), D: 70.05 cm (27.57 in) Pro |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Type no operating system Contact Sales Rep for more details |
