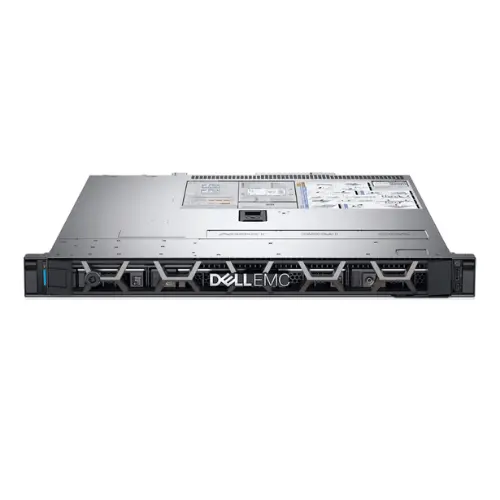

DELL PowerEdge R340 Rack Server
| Brand: DELL |
| Processor: Single Intel® Xeon® E3-1200 V6 Series |
| Gpu: Matrox G200eW3 |
| Memory: 32GB DDR4 |
| Weight: 16.6kg |
| Dimensions: W: 17.08 in, H: 1.68 in, D: 24.60 in |
| Cooling options: Heatsinks |
| Fans: 4 Fans |
Product Description
Specification
| Brand | Dell |
| Model | Dell PowerEdge R340 Rack Server |
Product Type
| Product type | Server |
Form Factor
| Form Factor | 1U Rackable |
Processor
| CPU Information | Single Intel® Xeon® E3-1200 V6 Series Total Cores 4 Total Threads 4 Max Turbo Frequency 3.50 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.50 GHz Processor Base Frequency 3.00 GHz Cache 8 MB Intel® Smart Cache |
Memory
| Installed Memory | 32GB DDR4 |
| Memory Type | Supported Memory Architecture: Up to 2400MT/s DDR4 DIMMs Memory Type: UDIMMs Memory Module Sockets: 4 Maximum RAM: Up to 64GB |
Hard Disk
| Storage Option | Supported Hard Drives Up to 4 Hard Drives / SSD Drives 2.5” SATA/SAS SSD SAS HDD (15K, 10K) Nearline SAS HDD (7.2K |
| Installed Hard Disk | 5 x 600GB SAS Hard Drive |
GRAPHICS CONTROLLER
| Display Adapter | Integrated Display Adapter Accelerators |
EXPANSION / CONNECTIVITY
| Expansion Slots | Slots 2 x PCIe 3.0 slots + 1 slot for internal storage Management Systems management: • IPMI 2.0 compliant • Dell OpenManage Essentials • Dell OpenManage Mobile • Dell OpenManage Power Center Dell OpenManage Integrations: • Dell OpenManage Integration Suite for Microsoft® System Center • Dell OpenManage Integration for VMware® vCenter™ Dell OpenManage Connections: • HP Operations Manager • IBM Tivoli® Netcool® • CA Network and Systems Management • Dell OpenManage Plug-in for Oracle® Database Manager Remote management: • iDRAC8 with Lifecycle Controller • iDRAC8 Express (default) • iDRAC8 Enterprise (upgrade) • 8GB vFlash media (upgrade) • 16GB vFlash media (upgrade) |
POWER
| Power Options | Platinum 1600W AC, auto-ranging Dual Power Supply Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | Width: 17.08 in / 434.00 mm Height: 1.68 in / 42.80 mm Depth: 24.60 in / 625.00 mm |
| Weight | Weight:16.6kg (63lbs.) |
OPERATING SYSTEM
| Pre Install Os | Can be Installed on demand |
