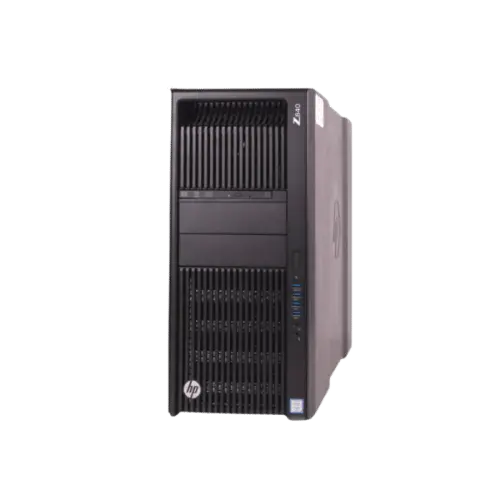

HP Z840 Workstation
| Storage type | SSD, HDD |
| Storage Size | 512 GB, 2 TB |
| Brand | HP |
| Operating System | Windows 10 Pro |
| Processor Make | Intel |
| Processor Series | Xeon |
| Processor Model | E5-2650 V3 |
| Memory Type | DDR4 |
| Memory Size | 64 GB |
| Graphics Make | NVIDIA |
| Graphic Series | Quadro |
| Graphics Model | K22000 |
Product Description
Processor
| CPU Information | Max Supported Qty 2 Upgradability upgradable Type Xeon Processor Number CPU Intel Xeon E5-2650V3 / 2.5 GHz Clock Speed 2.5 GHz Max Turbo Speed 3.5 GHz Number of Cores 10-core Manufacturer Intel CACHE MEMORY Installed Size 40 MB Cache Per Processor 20 MB Per Processor Size 20 MB |
Memory
| Installed Memory | 64GB DDR4 |
| Memory Type | RAM SUPPORTED Registered or Buffered Load-Reduced, registered Data Integrity Check ECC Max Size 256 GB, 512 GB RAM 64 GB / 256 GB (max) Memory Speed 1866 MHz Memory Specification Compliance PC4-17000 Features registered Configuration Features 4x 8 GB RAM Supported 256 GB registered - ECC 512 GB Load-Reduced - ECC Technology DDR4 SDRAM Installed Size 32 GB Data Integrity Check ECC Rated Memory Speed 2133 MHz MEMORY Max Supported Size 256 GB Form Factor DIMM 288-pin Slots Qty 8 Empty Slots 1TB DDR4-2400 ECC registered SDRAM (Transfer rates up to 2400 MT/s. Registered and load-reduced DIMMs may not be mixed.) Maximum of 1 TB ECC load-reduced memory when 64 GB DIMMs used 8 DIMM (with 1 processor) and 16 DIMM (with 2 processors) 7 |
Hard Disk
| Storage Option | Supported Internal Storage 300 GB up to 1.2 TB SAS (10000 rpm) 500 GB up to 4 TB SATA (7200 rpm) 500 GB SATA SED (7200 rpm) 128 GB up to 1 TB SATA SSD 256 GB up to 512 GB SATA SED SSD 1 TB (8 GB cache) SATA SSHD 256 GB up to 512 GB HP Z Turbo Drive (PCIe SSD) 256 GB up to 1 TB HP Z Turbo Drive G2 (PCIe SSD) 512 GB (2 x 256 GB) up to 2 TB (4 x 512 GB) HP Z Turbo Quad Pro (PCIe SSD) STORAGE RAID Level RAID 0, RAID 1, RAID 10 Interface Type Serial ATA-600 Type none STORAGE CONTROLLER Interface Type Serial Attached SCSI 2 Channel Qty 8 Type Serial Attached SCSI 2I installed Qty1 HARD DRIVE Interface Type SATA 6Gb/s Spindle Speed 7200 rpm Type HDD Interface Class Serial ATA Installed Qty 1 Capacity 2 TB STORAGE CONTROLLER (2ND) Type 1 x SATA - integrated Controller Interface Type Serial ATA-300 Channel Qty 6 Installed Qty 1 HARD DRIVE (2ND) Type none OPTICAL STORAGE Drive Type DVD Super MultiType DVD±RW (±R DL) / DVD-RAM Interface Type Serial ATA Additional Storage: 15-in-1 media card reader (optional) HP DX115 Removable HDD Frame/Carrier (optional) Drive Bays (Internal) Four 3.5" Drive Bays (External) Two 5.25"; One slim ODD |
| Installed Hard Disk | SSD 512GB+2TB SATA |
MAINBOARD
| Motherboard Type | Processor Socket LGA2011-v3 Socket Chipset Type Intel C612 |
CHIPSET
| Chipset Type | Chipset Type Intel C612 Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2 Processor Socket LGA2011-v3 Socket |
GRAPHICS CONTROLLER
| Display Adapter | Installed: Nvidia Quadro K22000 - 4GB DDR5 Supportd Graphic Cards Available GraphicsProfessional 2D: NVIDIA® NVS™ 310 (1 GB); NVIDIA® NVS™ 315 (1 GB); NVIDIA® NVS™ 510 (2 GB) Entry 3D: NVIDIA® Quadro® K420 (2 GB); NVIDIA® Quadro® K620 (2 GB); AMD FirePro™ W4300 (4 GB); NVIDIA® Quadro® K1200 (4 GB); NVIDIA® Quadro® K2200 (4 GB) High-end 3D: NVIDIA® Quadro® M4000 (8 GB); NVIDIA® Quadro® M5000 (8 GB); NVIDIA® Quadro® K6000 (12 GB); AMD FirePro™ W7100 (8 GB) High performance GPU computing: NVIDIA® Quadro® GP100 |
AUDIO OUTPUT
| Audio Type | Integrated IDT 92HD94 audio integrated Compliant Standards High Definition Audio |
MISCELLANEOUS
| Mix Features | Color black, hematite Features Setup Password, USB port control, audio ports control, network port control, power-on password, serial port I/O control Compliant Standards ACPI 2.0c, RoHS, WEEE Manufacturer Selling Program Ports and ConnectorsFront: 4 USB 3.0; 1 combo headset; 1 microphone Rear: 4 USB 3.0; 2 USB 2.0; 1 serial; 2 PS/2; 2 RJ-45; 1 audio line in; 1 audio line out Internal: 2 USB 2.0; 1 USB 3.0 Internal USB 2.0 is available by the 2x5 header. Internal USB 3.0 is available by a shrouded 9-pin connector. I/O Controller: HP IEEE 1394b FireWire PCIe (optional) HP Thunderbolt™ 2 PCIe 1-port I/O Card (optional) |
OPTICAL STORAGE
| DVD/RW Multi | Drive Type DVD Super Multi Type DVD±RW (±R DL) / DVD-RAM Interface Type Serial ATA |
NETWORKING
| Ports | Integrated Intel® I218LM PCIe GbE |
| Connectivity Technology | Integrated Intel® I210AT PCIe GbE |
EXPANSION / CONNECTIVITY
| Expansion Slots | Expansion Slots 2 PCIe Gen3 x16; 1 PCIe Gen3 x16 (when 2nd CPU installed); 1 PCIe Gen2 x4 (when 1 CPU installed) OR PCIe Gen3 x8 (when 2nd CPU installed); 1 PCIe Gen3 x8; 1 PCIe Gen3 x4; 1 PCIe Gen2 x1; 1 PCIe Gen2 x 4 when 1 CPU is installed; transforms to PCIe Gen3 x8 when 2nd CPU installed. The PCIe x8 connectors are open-ended, allowing a PCIe x16 card to be seated in the slot. |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 8 x 20.7 x 17.5 in 20.3 x 52.5 x 44.4 cm |
| Weight | 21.1 kg |
CHASSIS
| Chassis Type | Form Factor tower Manufacturer Form Factor mini tower HP Chassis Intrusion Sensor; TPM 1.2 certified |
POWER
| Power Options | Type power supply Min Operating Temperature 41 °F Nominal Voltage AC 120/230 V (50/60 Hz) Max Operating Temperature 95 °F 850 W 88% efficient, wide-ranging, active PFC; 1125 W 90% efficient, wide-ranging, active PFC |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Type Microsoft Windows 10 Professional 64-bit Edition OS Provided Microsoft Windows 10 Professional 64-bit Edition License Preinstalled OS Windows 10 |
