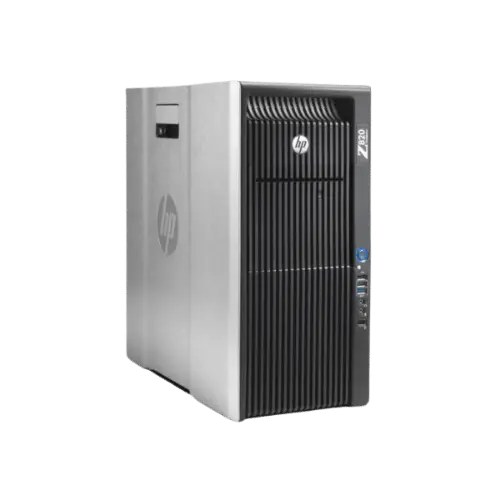

HP Z820 Workstation
| Brand | HP |
| Operating System | Windows 10 Pro |
| Processor Make | Intel |
| Processor Series | Xeon |
| Processor Model | E5-2660 |
| Memory Type | DDR4 |
| Memory Size | 64 GB |
| Graphics Make | NVIDIA |
| Graphic Series | Quadro |
| Graphics Model | QUADRO 5000 |
| Storage type | HDD |
| Storage Size | 2 TB |
Product Description
Processor
| CPU Information | Max Supported Qty 2 Upgradability upgradable Type Xeon Processor Number CPU Intel Xeon E5-2660 Clock Speed 2.2 GHz Max Turbo Speed 3.0 GHz Number of Cores Total 16-cores Manufacturer Intel CACHE MEMORY Total Installed Size 40 MB Cache Per Processor 20 MB Per Processor Size 20 MB |
Memory
| Installed Memory | 64GB DDR3 |
| Memory Type | Memory 16 DIMM slots, up to 512GB, 8-channel ECC DDR3 1600 MHz, 4 channels per CPU Memory type supported DDR3, RDIMM (Registered) or UDIMM (Unbuffered), ECC, LR (Load Reduction) DIMMs Memory speed supported 1066-MHz, 1333-MHz, & 1600-MHz Maximum memory Supports up to 64GB using UDIMMs Supports up to 256GB using RDIMMs Supports up to 512GB using LRDIMMs |
Hard Disk
| Storage Option | Hard drive controllers supported SATA and SAS controllers Bays Total Bays = 7 Internal bays 4 internal 3.5-inch bays (4 with acoustic dampening rail assemblies) External bays Interfaces supported 2-channel SATA 6.0 Gb/s Interface (2 channels e-SATA configurable) 4-channel SATA 3.0 Gb/s Interface 8-channel 6Gb SAS interface (8 SAS connectors on the motherboard), SAS ports can be ported externally by using the SAS Bulkhead and/or Back Panel connector Kits USB 3.0, USB 2.0, IEEE 1394a |
| Installed Hard Disk | HDD SAS 3.5 |
MAINBOARD
| Motherboard Type | Processor Socket LGA2011 Socket Chipset Type Intel C602 |
CHIPSET
| Chipset Type | Chipset Type Intel C612 Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2 Processor Socket LGA2011-v3 Socket |
GRAPHICS CONTROLLER
| Display Adapter | Graphics Processor NVIDIA Quadro 5000 Video Memory 2.5 GB GDDR5 SDRAM Video Interfaces DVI, DisplayPort Form Factor plug-in card Interface Type PCI Express 2.0 x16 |
AUDIO OUTPUT
| Audio Type | Form Factor integrated Compliant Standards High Definition Audio |
MISCELLANEOUS
| Mix Features | Temperature Operating: 5° to 35°C (40° to 95°F) Non-operating: -40° to 80°C (-40° to 176°F) Humidity Operating: 8% to 85% Non-operating: 8% to 90% Maximum altitude (non-pressurized) Operating: 3,000 m (10,000 ft) Non-operating: 9,100 m (30,000 ft) Dynamic shock1 Operating: Half-sine: 40 g, 2-3 ms Non-operating: Half-sine: 160 cm/s, 2-3 ms (upto 100 g) Square: 422 cm/s, 20 g Dynamic vibration2 Operating: 0.5 g (rms), 5-300 Hz Non-operating: 2.0 g (rms), 10-500 Hz Cooling Above 1524 m (5,000 ft) altitude, maximum operating temperature is de-rated by 1°C (1.8°F) per 305 m (1,000 ft) elevation increase. |
OPTICAL STORAGE
| DVD/RW Multi | Drive Type DVD Super Multi Type DVD±RW (±R DL) / DVD-RAM Interface Type Serial ATA |
CHASSIS
| Chassis Type | Chassis dimensions (H x W x D) 44.4 x 20.3 x 52.5 cm (17.5 x 8.0 x 20.7 in) |
POWER
| Power Options | Power supply 850 W 88% Efficient wide-ranging, active Power Factor Correction 1125 W 90% Efficient wide-ranging, active Power Factor Correction Operating voltage range 90-269 V ac |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Type Microsoft Windows 10 Professional 64-bit Edition OS Provided Microsoft Windows 10 Professional 64-bit Edition License Preinstalled OS Windows 10 |
