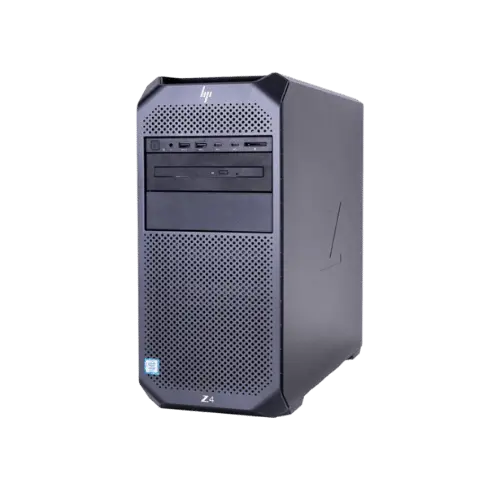

HP Z4 G4 Workstation
| Storage type | SSD, HDD |
| Storage Size | 512 GB, 1TB |
| Brand | HP |
| Operating System | Windows 10 Pro |
| Processor Make | Intel |
| Processor Series | Xeon |
| Processor Model | W-2123 |
| Memory Type | DDR4 |
| Memory Size | 32 GB |
| Graphics Make | NVIDIA |
| Graphic Series | Quadro |
| Graphics Model | K2200 |
Product Description
Specification
| Brand | HP |
| Model | HP Z4 G4 |
Product Type
| Product type | Workstation |
Form Factor
| Form Factor | Mid-Tower |
Processor
| CPU Information | Intel Xeon W-2123 processor Supported Processors 4, 6, 8, and 10 Core support 3.6 GHz 8.25 MB cache and 4 cores Up to 3.9 GHz with Intel Turbo Boost Technology Supports DDR4 memory up to 2666 MT/s data rate 120 W Supports Intel vPro technology Intel C422 Chipset (Intel Xeon W Processors) Intel X299 Chipset (Intel Core X-series Processors) |
Memory
| Installed Memory | 32GB DDR4 |
| Memory Type | DDR4-2666 registered DIMMs. Supported Rams ECC Registered DIMMs HP 8GB (8 GB x 1) DDR4-2666 ECC Reg RAM 16 GB (8 GB x 2) DDR4-2666 ECC Reg RAM 24 GB (8 GB x 3) DDR4-2666 ECC Reg RAM 32 GB (8 GB x 4) DDR4-2666 ECC Reg RAM 64 GB (8 GB x 8) DDR4-2666 ECC Reg RAM 16 GB (16 GB x 1) DDR4-2666 ECC Reg RAM 32 GB (16 GB x 2) DDR4-2666 ECC Reg RAM 64 GB (16 GB x 4) DDR4-2666 ECC Reg RAM 128 GB (16 GB x 8) DDR4-2666 ECC Reg RAM 32 GB (32 GB x 1) DDR4-2666 ECC Reg RAM 64 GB (32 GB x 2) DDR4-2666 ECC Reg RAM 128 GB (32 GB x 4) DDR4-2666 ECC Reg RAM 256 GB (32 GB x 8) DDR4-2666 ECC Reg RAM non-ECC HP 8GB (8 GB x 1) DDR4-2666 non-ECC Reg RAM HP 16GB (8 GB x 2) DDR4-2666 non-ECC Reg RAM HP 32GB (8 GB x 4) DDR4-2666 non-ECC Reg RAM HP 16GB (16 GB x 1) DDR4-2666 non-ECC Reg RAM HP 32GB (16 GB x 2) DDR4-2666 non-ECC Reg RAM HP 64GB (16 GB x 4) DDR4-2666 non-ECC Reg RAM HP 128GB (16 GB x 8) DDR4-2666 non-ECC Reg RAM NOTE: Only DDR4 DIMMs are supported. Memory configurations using 32GB DIMMs require the HP Z4 Memory Cooling Solution, which is available in both CTO and AMO. Maximum Supports up to 256 GB with Xeon W configurations Supports up to 128 GB with Core X configurations NOTE: Maximum memory capacities assume 64-bit operating systems such as Windows 10 Pro 64-bit, and Windows 7 Professional 64-bit. For systems installed with Windows 7 (Ultimate, Enterprise, or Pro), the maximum accessible system memory is 192 GB. |
Hard Disk
| Storage Option | SATA Hard Disk Drive Supported (HDD) HP 500GB SATA 6Gb/s 7200 Hard Drive HP 500GB 7200rpm SATA SFF SED Hard Drive HP 1TB SATA 6Gb/s 7200 Hard Drive HP 1TB Enterprise SATA 7200 HDD HP 2TB SATA 6Gb/s 7200 Hard Drive HP 4TB SATA 7200 Hard Drive HP 6TB Enterprise SATA 7200 HDD NOTE: Up to (4) 8.89 cm (3.5 in) 7200 rpm SATA drives. 500 GB, 1.0, 2.0, 4.0 TB. 16 TB maximum total. SATA Solid State Drives Supported (SSD) HP 256GB SATA SSD HP 512GB SATA SSD HP 1TB SATA SSD HP 2TB SATA SSD HP 256GB SATA SED Opal2 Solid State Drive HP 512GB SATA SED Opal2 Solid State Drive HP Enterprise Class 240GB SATA SSD HP Enterprise Class 480GB SATA SSD HP Z Turbo Drive 256GB MLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 512GB MLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 1TB MLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 256GB TLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 512GB TLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 1TB TLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 2TB TLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 256GB SED (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 512GB SED (Z4/Z6 G4) SSD Kit HP Z Turbo Drive Quad Pro HP Z Turbo Drive Quad Pro 2x256GB PCIe TLC SSD HP Z Turbo Drive Quad Pro 2x512GB PCIe TLC SSD HP Z Turbo Drive Quad Pro 2x1TB PCIe TLC SSD HP Z Turbo Drive Quad Pro 2x2TB PCIe TLC SSD Intel Virtual RAID on CPU (Intel VROC) for NVMe Intel VROC NVMe SSD Standard Controller Module Xeon processor required Enables RAID 0, 1 and 1 and 0 Enables RAID 0, 1 & 10 plus RAID 5 with write hole closure options |
| Installed Hard Disk | HDD 3.5 |
GRAPHICS CONTROLLER
| Display Adapter | Installed Graphic Card Nvidia Quadro K2200 4GB (GDDR5) Supported Graphic Cards Entry 3D (two graphics cards supported) NVIDIA Quadro P400 2GB Graphics NVIDIA Quadro P620 2GB Graphics NOTE: Dual graphics configuration requires the 750 W chassis or 1000 W chassis. Mid-range 3D (two graphics cards supported) NVIDIA Quadro P1000 4GB Graphics (first GFX) NVIDIA Quadro P2000 5GB Graphics (first GFX) AMD Radeon Pro WX 3100 4GB Graphics AMD Radeon Pro WX 3200 4GB Graphics AMD Radeon Pro WX 4100 4GB Graphics NOTE: Dual graphics configuration requires the 750 W chassis or 1000 W chassis. Dual graphics configuration requires the 750 W or 1000 W chassis and the HP Z4 G4 Fan and Front Card Guide Kit, which is available to both CTO and AMO. High-End 3D (two graphics cards supported) NVIDIA Quadro P4000 8GB Graphics NOTE: Single graphics configuration requires the HP Z4 G4 Fan and Front Card Guide Kit, which is available to both CTO and AMO. Single graphics configuration requires the 750 W chassis or 1000 W chassis. The dual graphics configuration requires the 1000W chassis. NVIDIA Quadro RTX 4000 8GB Graphics AMD Radeon Pro WX 7100 8GB Graphics NOTE: Single graphics configuration requires the HP Z4 G4 Fan and Front Card Guide Kit, which is available to both CTO and AMO. Single graphics configuration requires the 750 W chassis or 1000 W chassis. Ultra High-End 3D (single and dual graphics card support) NVIDIA Quadro GP100 16GB Graphics NVIDIA Quadro GV100 32GB Graphics NVIDIA Quadro P5000 16GB Graphics NVIDIA Quadro P6000 24GB Graphics NOTE: Single graphics configuration requires the HP Z4 G4 Fan and Front Card Guide Kit, which is available to both CTO and AMO. Single graphics configuration requires the 750 W chassis or 1000 W chassis. The dual graphics configuration requires the 1000W chassis. NVIDIA Quadro RTX 5000 16GB Graphics NVIDIA Quadro RTX 6000 24GB Graphics NVIDIA Quadro RTX 8000 48GB Graphics AMD Radeon Pro WX 9100 16GB Graphics (single graphics card supported) NOTE: Single graphics configuration requires the HP Z4 G4 Fan and Front Card Guide Kit, which is available to both CTO and AMO. Single graphics configuration requires the 750 W chassis or 1000 W chassis. |
EXPANSION / CONNECTIVITY
| Expansion Slots | Front I/O (base) (4) USB 3.1 Gen 1 Type-A (1 charging) (1) Headset audio port Front I/O (optional) (1) Optional media card reader Front I/O (optional premium) (2) USB 3.1 Gen 1 Type-A connector (1 charging) (2) USB 3.1 Gen 2 Type-C connector (1) Headset headset (1) Power button with power/fault LED (1) Drive activity LED Internal I/O (1) USB 3.1 Gen 1 (aka USB 3.0) single-port header (1) USB 2.0 single-port header (1) USB 2.0 dual-port header Rear I/O (for Xeon W configurations) (6) USB 3.1 Gen 1 (aka USB 3.0) Type-A ports (2) 1 Gbe LAN ports (1x supporting Intel AMT) NOTE: Intel AMT is not available on Intel Core X configurations. Rear I/O (for Core X configurations) (5) USB 3.1 Gen 1 (aka USB 3.0) Type-A ports (1) 1 Gbe LAN ports (1x supporting Intel AMT) Rear I/O (common) (1) Audio line-out (1) Audi line-in (line-in can be retasked as a microphone) (1) PS/2 mouse (1) PS/2 keyboard (1) Rear power button (1) serial port (cable up to rear bulkhead) |
NETWORKING
| Ports | Integrated one Gigabit Ethernet (Intel i218LM), supports Wake-on-LAN |
POWER
| Power Options | Entry (Xeon series) 465 W 90% Efficient wide-ranging, active Power Factor Correction (PFC) Mid-Range (Xeon series) 750 W 90% Efficient wide-ranging, active Power Factor Correction (PFC) High-End (Xeon and Core i9 series) 1000 W 90% Efficient wide-ranging, active Power Factor Correction (PFC) Includes 4x 6+2-pin graphics power cables Includes a Front Fan and Card Guide kit to enable support for dual high end graphics solutions |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 38.61 x 16.89 x 44.45 cm (15.2 x 6.65 x 17.5 in) |
| Weight | Minimum 10.2 kg (22.49 lb) Typical 11.3 kg (24.91 lb) Maximum 17.3 kg (38.14 lb) |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Windows 10 Pro |
