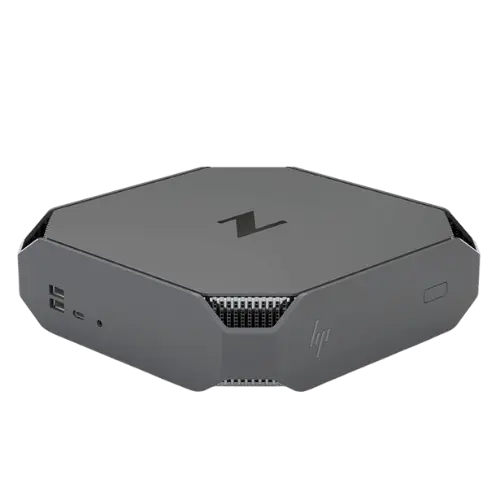

HP Z2 Mini G4 Workstation
| Brand | HP |
| Operating System | Windows 10 Pro |
| Processor Make | Intel |
| Processor Series | Core i7 |
| Memory Type | DDR4 |
| Memory Size | 16 GB |
| Graphics Make | Intel |
| Graphic Series | HD Graphics |
| Storage type | SSD |
| Storage Size | 512 GB |
Product Description
Specification
| Brand | HP |
| Model | HP Z2 Mini G4 Workstation |
Product Type
| Product type | Workstation |
Form Factor
| Form Factor | Mini |
Processor
| CPU Information | Intel Core i7-8th Generation Supported Processors 4, 6, 8, Core support Intel Core i7-8700 processor Up to 4.6 GHz with Intel Turbo Boost Technology (3.2 GHz base frequency) 12 MB cache and 6 cores Intel UHD Graphics 630 DDR4 memory up to 2666 MT/s data rate 65 W TDP Intel vPro Technology |
Memory
| Installed Memory | 16GB DDR4 |
| Memory Type | DDR4-2666 registered DIMMs. Maximum Support Up to 64 GB (2) SODIMM slots supporting dual-channel memory 64 GB DDR4 ECC/non-ECC (transfer rates up to 2666 MT/s) 4 GB, 8 GB, 16 GB, and 32 GB SODIMMs 4 GB, 8 GB, and 16 GB non-ECC unbuffered SODIMMs NOTE: Intel Core i5/i7 processors only support non-ECC memory. 8 GB, 16 GB, and 32 GB ECC unbuffered SODIMMs HP 8 GB (1 x 8 GB) DDR4-2666 ECC SODIMM HP 16 GB (2 x 8 GB) DDR4-2666 ECC SODIMM HP 32 GB (2 x 16 GB) DDR4-2666 ECC SODIMM HP 64 GB (2 x 32 GB) DDR4-2666 ECC SODIMM NOTE: ECC and non-ECC memory DIMMs cannot be mixed on the same system. |
Hard Disk
| Storage Option | SATA Hard Disk Drive Supported (HDD) HP 500GB SATA 6Gb/s 7200 Hard Drive HP 500GB 7200rpm SATA SFF SED Hard Drive HP 1TB SATA 6Gb/s 7200 Hard Drive HP 1TB Enterprise SATA 7200 HDD HP 2TB SATA 6Gb/s 7200 Hard Drive HP 4TB SATA 7200 Hard Drive HP 6TB Enterprise SATA 7200 HDD NOTE: Up to (4) 8.89 cm (3.5 in) 7200 rpm SATA drives. 500 GB, 1.0, 2.0, 4.0 TB. 16 TB maximum total. SATA Solid State Drives Supported (SSD) HP 256GB SATA SSD HP 512GB SATA SSD HP 1TB SATA SSD HP 2TB SATA SSD HP 256GB SATA SED Opal2 Solid State Drive HP 512GB SATA SED Opal2 Solid State Drive HP Enterprise Class 240GB SATA SSD HP Enterprise Class 480GB SATA SSD HP Z Turbo Drive 256GB MLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 512GB MLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 1TB MLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 256GB TLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 512GB TLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 1TB TLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 2TB TLC (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 256GB SED (Z4/Z6 G4) SSD Kit HP Z Turbo Drive 512GB SED (Z4/Z6 G4) SSD Kit HP Z Turbo Drive Quad Pro HP Z Turbo Drive Quad Pro 2x256GB PCIe TLC SSD HP Z Turbo Drive Quad Pro 2x512GB PCIe TLC SSD HP Z Turbo Drive Quad Pro 2x1TB PCIe TLC SSD HP Z Turbo Drive Quad Pro 2x2TB PCIe TLC SSD Intel Virtual RAID on CPU (Intel VROC) for NVMe Intel VROC NVMe SSD Standard Controller Module Xeon processor required Enables RAID 0, 1 and 1 and 0 Enables RAID 0, 1 & 10 plus RAID 5 with write hole closure options |
| Installed Hard Disk | SSD 512 GB |
GRAPHICS CONTROLLER
| Display Adapter | Installed Graphic: Intel HD Graphics Supported Graphic Cards NVIDIA Quadro P1000 4GB Graphics AMD Radeon Pro WX 3200 4GB Graphics AMD Radeon Pro WX 4150 4GB Graphics Graphics cable adapters HP DisplayPort to HDMI Adapter HP DisplayPort to Dual Link DVI Adapter HP DisplayPort to DVI-D Adapter HP DisplayPort to VGA Adapter HP USB-C to VGA Adapter HP USB-C to HDMI Adapter HP USB-C to DP Adapter |
EXPANSION / CONNECTIVITY
| Expansion Slots | Front side (1) Power button Side I/O ports (1) Headphone/microphone combo jack (1) USB 3.0 Type-A charging data port (1) USB 3.0 Type-A data port (1) USB 3.1 Gen 2 Type-C charging data port Back I/O ports (Entry unit) (2) DisplayPort (DP 1.2) outputs from Intel UHD graphics (2) USB 3.0 ports (1) Serial port (optional) (1) RJ-45 (LoM) (1) Flexible module port output (optional flexible module required) (1) DC Input Back I/O ports (Performance unit) with discrete graphics (3) DP 1.2 outputs from discrete graphic module (2) USB-A 3.0 ports (1) USB 3.1 Gen 2 Type-C port (1) Serial port (optional) (1) RJ-45 (LoM) (1) Flexible module port output (optional flexible module required) (1) DC Input Back I/O ports (Performance unit) with no discrete graphics (1) DP 1.2 output from discrete graphic module (2) USB-A 3.0 ports (1) USB 3.1 Gen 2 Type-C port (1) Serial port (optional) (1) RJ-45 (LoM) (1) Flexible module port output (optional flexible module required) (1) DC Input |
NETWORKING
| Ports | Intel I219LM PCIe GbE Controller (Intel vPro with Intel AMT 12.0) |
POWER
| Power Options | Z2 Mini G4 Entry 135 W Power supply 88% efficiency at 115 Vac Wide-ranging Active PFC 1.9 A at 90 Vac Z2 Mini G4 Performance 200 W and 230 W Power supply 89% efficiency at 230 Vac Wide-ranging Active PFC 2.9 A at 90 Vac (200 W) 3.5 A at 90 Vac (230 W) Operating voltage range 115 to 230 VAC Operating line frequency range 47 to 63 Hz |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 58.0 x 215.9 x 215.9 mm (2.28 x 8.5 x 8.5 in) |
| Weight | 2.18 kg (4.81 lb) |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Windows 10 Pro |
