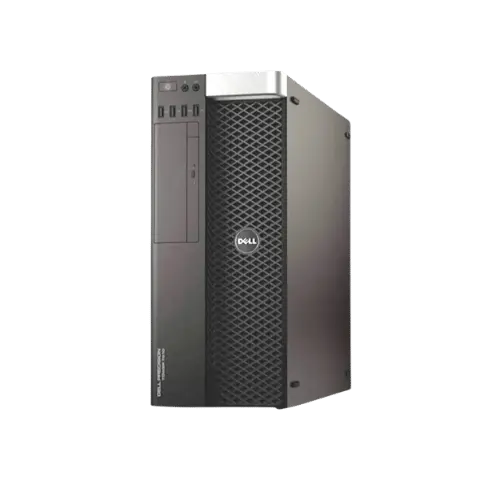

Dell Precision T7810 Workstation
| Storage type | SSD, HDD |
| Storage Size | 512 GB, 1TB |
| Brand | Dell |
| Operating System | Windows 10 Pro |
| Processor Make | Intel |
| Processor Series | Xeon |
| Processor Model | E-5 Series |
| Memory Type | DDR4 |
| Memory Size | 64 GB |
| Graphics Make | NVIDIA |
| Graphic Series | Quadro |
| Graphics Model | K2200 |
Product Description
Specification
| Brand | Dell |
| Model | Precision T7810 |
| Part Number | Precision T7810 |
Product Type
| Product type | Workstation |
Form Factor
| Form Factor | Full-Tower |
Processor
| CPU Information | Intel® Xeon® E5- v3 Series Family Supported Processors 4, 6, 8, and 10 Core support One or two; Intel® Xeon® processor E5-2600 v3 family with up to fourteen cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology Optimized Intel Turbo Boost and optional Intel vProTM technology |
Memory
| Installed Memory | 64GB DDR4 |
| Memory Type | Quad channel; Up to 256GB6,7 2133 MHz DDR4 ECC RDIMM memory); 8 DIMM slots (4/processor) |
Hard Disk
| Storage Option | Hard Drive Storage Options5 Up to four 3.5" or eight8 2.5" (four in 5.25" bay) internal SATA, SAS, or SSD hard drives. Intel CAS-W – Caching Acceleration Software for Workstations: requires 128GB SSD + standard storage hard drive. SATA 7200RPM Up to 3.0TB SATA 10KRPM Up to 500GB SAS 10K RPM Up to 900GB SAS 15K RPM Up to 300GB SSD Up to 512GB PCIe SSD Up to 350GB |
| Installed Hard Disk | HDD 3.5 |
GRAPHICS CONTROLLER
| Display Adapter | Installed Graphic Card Nvidia Quadro K2200 4GB (GDDR5) Video Card Support for two PCI Express® x16 Gen 2 or Gen 3 cards up to 300W total for graphics 825W PSU (restrictions) High-end 3D cards: NVIDIA® Quadro® K6000 NVIDIA® Quadro® K5200 Mid-range 3D cards: AMD FirePro™ W7100 AMD FirePro™ W5100 NVIDIA Quadro K4200 NVIDIA Quadro K2200 Entry 3D cards: AMD FirePro W4100 AMD FirePro W2100 NVIDIA Quadro K620 NVIDIA Quadro K420(Post RTS) Professional 2D cards: (not ISV certified) NVIDIA Quadro NVS 510 NVIDIA Quadro NVS 315 NVIDIA Quadro NVS 310 GPU GPGPU MCC Compute: NVIDIA Tesla® K20C Computing Processor (GPGPU) Intel 3120A Coprocessor (available via S & P in select regions) |
EXPANSION / CONNECTIVITY
| Expansion Slots | Ports Front 1 USB 3.0 3 USB 2.0 Internal 1 USB 2.0 1 2x5 USB 2.0 header 4 SATA/SAS 6Gb/s 2 SATA 6GB/s for optical drives Rear 3 USB 2.0 3 USB 3.0 2 PS2, Serial RJ45 intel Gigabit Ethernet Optical Drive Slim-line tray load options: DVD-ROM; DVD+/-RW Slots 5 Full-length Slots 1Half length 2 PCIe x16 Gen 3 PCIe x16 Gen 3 wired x8 (Half-length) PCIe x4 Gen 2 PCIe x1 gen2 PCI 32 bit/33MHz |
NETWORKING
| Ports | Integrated one Gigabit Ethernet (Intel i218LM), supports Wake-on-LAN |
POWER
| Power Options | Power Supply (externally accessible, toolless, 90% efficient, 80 Plus® Gold Certified): 820W or 635W |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | HxWxD: 16.30 x 6.79 x 18.54"; 414.0 x 172.5 x 470.9mm |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Windows 10 Pro |
