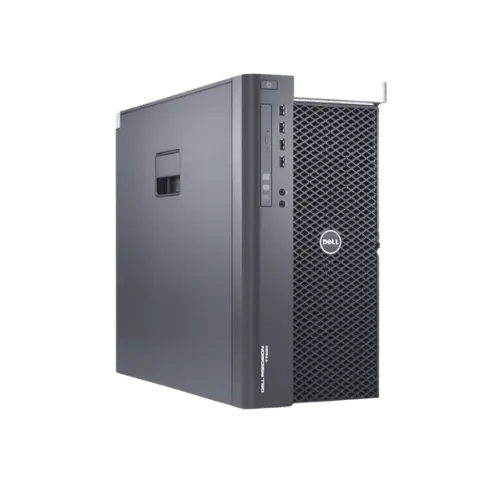

Dell Precision T7600 Workstation
| Brand | Dell |
| Operating System | Windows 10 Pro |
| Processor Make | Intel |
| Processor Series | Xeon |
| Processor Model | E-5 Series |
| Memory Type | DDR3 |
| Memory Size | 64 GB |
| Graphics Make | NVIDIA |
| Graphic Series | Quadro |
| Graphics Model | K2200 |
| Storage type | HDD |
| Storage Size | 1TB |
Product Description
Specification
| Brand | Dell |
| Model | Dell Precision T7600 |
| Part Number | Precision T7600 |
Product Type
| Product type | Workstation |
Form Factor
| Form Factor | Full-Tower |
Processor
| CPU Information | Intel® Xeon® E5-Series Family Supported Processors 4, 6, and 8 Core support One or two; Intel® Xeon® processor E5-2600 family with up to eight cores and Intel Advanced Vector Extensions Intel Trusted Execution Technology Intel AES New instructions Optimized Intel Turbo Boost and optional Intel vProTM technology Sandy Bridge E5-26xx series, LGA2011: Intel® Xeon™ processors Up to 150W Instruction/Data Cache: 32KB Supports Dual Processors Intel® Xeon®E5-2603 Processor(Four Core HT, 1.8GHz Turbo, 10 MB Intel Smart Cache, 80 watt) Intel® Xeon®E5-2609 Processor (Four Core HT, 2.4GHz Turbo, 10 MB Intel Smart Cache, 80 watt) Intel® Xeon®E5-2620 Processor (Six Core HT, 2.0GHz Turbo, 15 MB Intel Smart Cache, 95 watt) Intel® Xeon®E5-2630 Processor(Six Core HT, 2.3GHz Turbo, 15 MB Intel Smart Cache, 95 watt) Intel® Xeon®E5-2650 Processor(Eight Core HT, 2.0GHz Turbo, 20 MB Intel Smart Cache, 95 watt) Intel® Xeon®E5-2665 Processor(Eight Core HT, 2.4GHz Turbo, 20 MB Intel Smart Cache, 115 watt) Intel® Xeon®E5-2667 Processor(Six Core HT, 2.9GHz Turbo, 15 MB Intel Smart Cache, 115 watt) Intel® Xeon®E5-2680 Processor(Eight Core HT, 2.7GHz Turbo,20 MB Intel Smart Cache, 130 watt) Intel® Xeon®E5-2643 Processor(Four Core HT, 3.3GHz Turbo, 10 MB Intel Smart Cache, 130 watt) Intel® Xeon®E5-E5-2687W Processor(Eight Core HT, 3.1GHz Turbo, 20 MB Intel Smart Cache, 130 watt) |
Memory
| Installed Memory | 64GB DDR4 |
| Memory Type | Quad channel up to 512GB 1600MHz or 1333MHz ECC RDIMM memory 16 DIMM slots (8 per processor) (512GB config uses 1333MHz 32GB LRDIMMs) Supported configurations Memory type DDR3 1333 MHz and 1600 MHz RDIMM ECC Memory connectors 8 DIMM slots with the single processor; 16 DIMM slots with dual processors Supported memory module capacities 4 GB, 8 GB, and 16 GB RDIMM ECC; 32GB LRDIMM ECC Minimum memory 4 GB Maximum memory 256 GB single processor; 512 GB dual processor |
Hard Disk
| Storage Option | Up to four 3.5" or eight 2.5" (four in 5.25" bay) internal SATA or SAS hard drives. Additional add-in controller is required to reach 6.0Gb/s speeds for drives that are 6.0Gb/s capable. SATA 7200RPM SAS 10K RPM SAS 15K RPM SSD Up to 3.0TB Up to 900GB 146GB 256GB Storage Controller Integrated: Intel C600 Storage Control Unit (SCU) SATA 3.0Gb/s controller with host based RAID 0, 1, 5, 10 and SAS 3.0Gb/s support with RAID 0, 1, 10 standard Upgradeable only at the time of purchase to: SAS RAID 5 |
| Installed Hard Disk | HDD 3.5 |
GRAPHICS CONTROLLER
| Display Adapter | Installed Graphic Card Nvidia Quadro K2200 4GB (GDDR5) Support for up to three2 PCI Express® x16 Gen 2 or Gen 3 graphics cards up to 600W (total for graphics): Up to 4 full-height, full length (maximum of 600 W) 2 GB NVIDIA Quadro K2000 3 GB NVIDIA Quadro K4000 4 GB NVIDIA® Quadro® K5000 1 GB NVIDIA® Quadro® K600 512MB NVIDIA® Quadro® NVS 300/310 2 GB NVIDIA® Quadro® NVS 510 1 GB AMD FirePro™ V4900 2 GB AMD FirePro™ W5000 512MB AMD FirePro™ 2270 One or two NVIDIA Tesla® C2075 GPGPU - Supports Nvidia MaximusTM technology |
EXPANSION / CONNECTIVITY
| Expansion Slots | I/O Ports Front 3 - USB 2.0 1 - USB 3.0 1 - Microphone 1 - Headphone Internal 3 - USB 2.0 2 - SATA 6.0Gb/s (reserved for optical drive(s)) Rear 5 - USB 2.0 1 - USB 3.0 2 - PS2 1 - Serial 2 - RJ45 1 - 1394a (via optional add-in card) |
NETWORKING
| Ports | Integrated one Gigabit Ethernet (Intel i218LM), supports Wake-on-LAN |
POWER
| Power Options | Power Supply (externally accessible, toolless, 90% efficient, 80 Plus® Gold Certified): 820W or 635W |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 16.95" x 8.50" x 20.67"; 438mm x 216mm x 545mm |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Windows 10 Pro |
