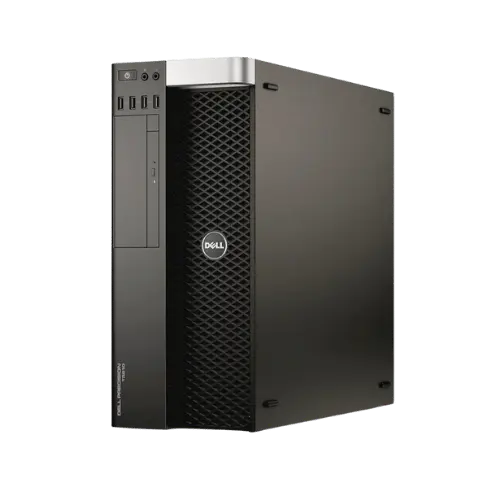

Dell Precision T5610 Workstation
| Brand | Dell |
| Operating System | Windows 10 Pro |
| Processor Make | Intel |
| Processor Series | Xeon |
| Processor Model | E-5 Series |
| Memory Type | DDR3 |
| Memory Size | 64 GB |
| Graphics Make | NVIDIA |
| Graphic Series | Quadro |
| Graphics Model | K4000 |
| Storage type | HDD |
| Storage Size | 1TB |
Product Description
Specification
| Brand | Dell |
| Model | Dell Precision T5610 |
| Part Number | Precision T5610 |
Product Type
| Product type | Workstation |
Form Factor
| Form Factor | Mid-Tower |
Processor
| CPU Information | Intel® Xeon® E5- v2 Series Family Quad-Core Total Cores 4 Total Threads 8 Supported Processors 4, 6, and 8, 10 Core support Supports Dual Processors Intel® Xeon® E5-2603 v2 Processor (Four Core, 1.8GHz, 10 MB) Intel® Xeon® E5-2609 v2 Processor (Four Core, 2.5GHz, 10 MB) Intel® Xeon® E5-2620 v2 Processor (Six Core HT, 2.1GHz Turbo, 15 MB) Intel® Xeon® E5-2630 v2 Processor(Six Core HT, 2.6GHz Turbo, 15 MB) Intel® Xeon® E5-2650 v2 Processor (Eight Core HT, 2.6GHz Turbo, 20 MB) Intel® Xeon® E5-2670 v2 Processor (Ten Core HT, 2.5GHz Turbo, 25 MB) Intel® Xeon® E5-2687W v2 Processor(Eight Core HT, 3.4GHz Turbo, 25 MB) Intel® Xeon® E5-2637 v2 Processor(Four Core HT, 3.5GHz Turbo, 15 MB) |
Memory
| Installed Memory | 64GB DDR3 |
| Memory Type | Quad channel; Up to 128GB 1866MHz ECC RDIMM memory; 8 DIMM slots (4 per processor) Supported configurations Memory type DDR3 1866 MHz RDIMM ECC Memory connectors 4 DIMM slots with the single processor; 8 DIMM slots with dual processors Supported memory module capacities 2GB, 4 GB, 8 GB, and 16 GB Minimum memory 4 GB Maximum memory 128 GB |
Hard Disk
| Storage Option | Hard Drive Storage Options7: Up to three 3.5" or four 2.5" internal SATA, SAS, or SSD drives. Additional add-in controller required for SAS hard drives. Intel CAS-W – Caching Acceleration Software for Workstations: requires 128GB SSD + standard storage hard drive. SATA 7200RPM Up to 3.0TB SATA 10KRPM Up to 500GB SAS 10K RPM Up to 900GB SAS 15K RPM Up to 300GB SSD Up to 512GB PCIe SSD Up to 350GB |
| Installed Hard Disk | HDD 3.5 |
GRAPHICS CONTROLLER
| Display Adapter | Installed Graphic Card Nvidia Quadro K4000 4GB (GDDR5) Up to 2 full-height, full length (maximum of 300 W) Up to 2 full-height, full length (maximum of 300 W) 2 GB NVIDIA Quadro K2000 3 GB NVIDIA Quadro K4000 4 GB NVIDIA® Quadro® K5000 1 GB NVIDIA® Quadro® K600 512MB NVIDIA® Quadro® NVS 310 2 GB NVIDIA® Quadro® NVS 510 1 GB AMD FirePro™ V4900 2 GB AMD FirePro™ W5000 1 GB AMD FirePro V3900 512MB AMD FirePro™ 2270 Video Card Graphics5: Support for two PCI Express® x16 Gen 2 or Gen 3 graphics cards up to 300W (total for graphics): High-End 3D NVIDIA® Quadro® K5000 Mid-range 3D AMD FirePro™ W7000 AMD FirePro W5000 NVIDIA Quadro K4000 NVIDIA Quadro K2000 Entry 3D AMD FirePro V4900 AMD FirePro V3900 NVIDIA Quadro K600 Professional 2D (not ISV certified) AMD FirePro 2270 NVIDIA Quadro NVS™ 510 NVIDIA Quadro NVS 310 GPU: NVIDIA Tesla® K20C GPGPU - Supports Nvidia Maximus™ technology |
EXPANSION / CONNECTIVITY
| Expansion Slots | Ports Front 3 USB 2.0 USB 3.0 Internal 3 USB 2.0 2 SATA 6.0Gb/s 2 SATA 3.0Gb/s 2 SATA 3.0Gb/s (for optical drive(s)) Rear 3 USB 2.0 3 USB 3.0 2 PS2 Serial RJ45 1394a (Optional via add-in Card) Slots 2 PCIe x16 Gen 3 PCIe x16 Gen 3 wired x8 (Half length) PCIe x16 Gen 2 wired x4 PCIe x1 Gen 2 PCI 32bit/33MHz (five Full length, One Half length) |
NETWORKING
| Ports | Integrated one Gigabit Ethernet (Intel i218LM), supports Wake-on-LAN |
POWER
| Power Options | Power Supply (externally accessible, toolless, 90% efficient, 80 Plus® Gold Certified): 820W or 635W |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 16.30" x 6.79" x 18.54"; 414mm x 172.6mm x 471mm |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Windows 10 Pro |
