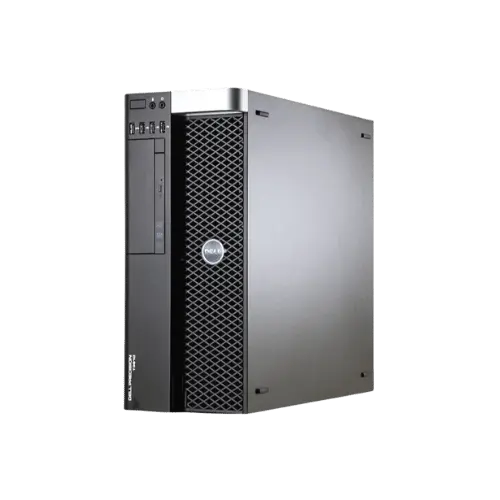

Dell Precision T3610 Workstation
| Brand | Dell |
| Operating System | Windows 10 Pro |
| Processor Make | Intel |
| Processor Series | Xeon |
| Processor Model | E-5 Series |
| Memory Type | DDR3 |
| Memory Size | 16 GB |
| Graphics Make | NVIDIA |
| Graphic Series | Quadro |
| Graphics Model | K2000 |
| Storage type | HDD |
| Storage Size | 1TB |
Product Description
Specification
| Brand | Dell |
| Model | Precision T3610 |
| Part Number | Dell Precision T3610 |
Product Type
| Product type | Workstation |
Form Factor
| Form Factor | Mid-Tower |
Processor
| CPU Information | Intel® Xeon® E5-Series V2 Family Quad-Core Total Cores 4 Total Threads 8 Supported Processors Intel® Xeon® processor E5-1600 v2 or Intel Xeon E5-1603 with up to six cores and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost, and optional Intel vPro™ technology |
Memory
| Installed Memory | 16GB DDR3 |
| Memory Type | Quad channel; Up to 128GB 1866MHz ECC or 1600MHz non-ECC DDR3 memory; 8 DIMM slots The Dell Precision T3610 has a four-channel memory bus architecture. Dell recommends that all four memory channels be populated with DIMMs for maximum memory performance. Please note, that RDIMM ECC and NECC memory cannot be mixed. Maximum memory speed is tied to the processor. 1600MHz and 1333MHz memory will run at a reduced speed of 1066MHz when paired with the Intel® Xeon E5-1603 or Intel® Xeon E5-1607 processors. |
Hard Disk
| Storage Option | Hard Drive Storage Options7 Up to three 3.5" or four 2.5" internal SATA, SAS, or SSD drives. Additional add-in controller required for SAS hard drives. Intel CAS-W – Caching Acceleration Software for Workstations: requires 128GB SSD + standard storage hard drive. SATA 7200RPM Up to 3.0TB SATA 10KRPM Up to 500GB SAS 10K RPM Up to 900GB SAS 15K RPM Up to 300GB SSD Up to 512GB PCIe SSD Up to 350GB |
| Installed Hard Disk | HDD 3.5 |
GRAPHICS CONTROLLER
| Display Adapter | Installed Graphic Card Nvidia Quadro K2000 2GB (GDDR5) Video Card Graphics5: Support for two PCI Express® x16 Gen 2 or Gen 3 graphics cards up to 300W (total for graphics): High-End 3D NVIDIA® Quadro® K5000 Mid-range 3D AMD FirePro™ W7000 AMD FirePro™ W5000 NVIDIA® Quadro® K4000 NVIDIA Quadro K2000 Entry 3D AMD FirePro V4900 NVIDIA Quadro K600 Professional 2D (not ISV certified) AMD FirePro 2270 NVIDIA Quadro NVS™ 510 NVIDIA Quadro NVS 310 |
EXPANSION / CONNECTIVITY
| Expansion Slots | Ports Front 3 USB 2.0 USB 3.0 Internal 3 USB 2.0 2 SATA 6.0Gb/s 2 SATA 3.0Gb/s 2 SATA 3.0Gb/s (for optical drive(s)) Rear 3 USB 2.0 3 USB 3.0 2 PS2 Serial RJ45 1394a (Optional via add-in Card) Slots 2 PCIe x16 Gen 3 PCIe x16 Gen 3 wired x8 (Half length) PCIe x4 Gen 2 PCIe x1 Gen 2 PCI 32bit/33MHz (five Full length, One Half length) |
NETWORKING
| Ports | Integrated one Gigabit Ethernet (Intel i218LM), supports Wake-on-LAN |
POWER
| Power Options | Power Supply (externally accessible, toolless, 80 Plus® Gold Certified, 90% efficient): 635W OR 425W |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | (HxWxD) 16.30" x 6.79" x 18.54"; 414mm x 172.6mm x 471mm |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Windows 10 Pro |
