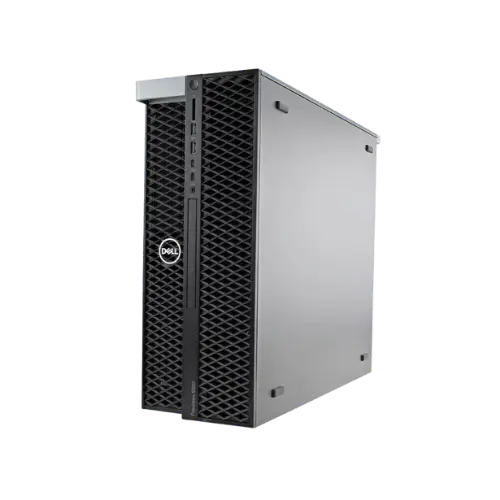

Dell Precision 5820 Workstation
| Brand | Dell |
| Operating System | Windows 10 Pro |
| Processor Make | Intel |
| Processor Series | Xeon |
| Processor Model | W-2125 |
| Memory Type | DDR4 |
| Memory Size | 32 GB |
| Graphics Make | NVIDIA |
| Graphic Series | Quadro |
| Graphics Model | P2000 |
| Storage type | SSD |
| Storage Size | 512GB |
Product Description
Specification
| Brand | Dell |
| Model | Precision 5820 Workstation Refurbished |
Product Type
| Product type | Workstation |
Form Factor
| Form Factor | Mid-Tower |
Processor
| CPU Information | Installed Qty 1 Upgradability upgradable Type Xeon W2125 Manufacturer Intel Clock Speed 4.0 GHz Max Turbo Speed 4.50 GHz Number of Cores 4-core Total Threads Chipset Type Intel C622 Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2 Processor Socket FCLGA3647 Socket. Installed SizeL3 cache - 8.25 MB |
Memory
| Installed Memory | 32GB DDR4 |
| Memory Type | Technology DDR4 SDRAM - ECC Memory Speed 2400 MHz Memory Specification Compliance PC4-21333 Supported Memory Four channel memory up to 256GB 2666MHz DDR4 ECC memory. 8 DIMM slots Note: Memory speed is dependent on specific Intel® Xeon Processor W Family processor installed |
Hard Disk
| Storage Option | Hard Drive Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated. Up to 2 front accessible (hot plug) M.2 NVMe PCIe SSDs are supported in FlexBays on enabled PCIe chassis with integrated Intel® controller. NVMe RAID 0,1 option (Intel® RSTe vROC). Dell M.2 carrier with PCIe SSD for PCIe FlexBay available as customer kit. Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel® RSTe vROC). M.2 NVMe PCIe SSDs Up to 4 x 1TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 cards. Front FlexBay M.2 NVMe PCIe SSDs Up to 2 x 1TB drives 2.5” SATA SSD Up to 6 x 1TB drives 2.5” SAS SSD Up to 6 x 800GB drives 3.5” SAS 7200 RPM 12Gb/s Up to 5 x 4TB 2.5” SAS 10K RPM 12Gb/s Up to 6 x 1.8TB 2.5” SAS 15K RPM 12Gb/s Up to 6 x 900GB 2.5” Self Encrypting Drives 512GB 2.5” SED (OPAL/ FIPS (140-2) HDD M.2 PCIe SED SSD |
| Installed Hard Disk | SSD 512GB |
GRAPHICS CONTROLLER
| Display Adapter | Installed Graphic Card Nvidia Quadro P2000 5GB (GDDR5) Video Card Supported Video Card Support for 2 PCI Express® x16 Gen 3 graphics card2 - up to 600W with maximum of up to 2 x 300W double width graphics cards. High end 3D cards: Radeon™ Pro WX 9100 Radeon™ Pro SSG (future) NVIDIA® Quadro® GP100 NVIDIA® Quadro® P6000 NVIDIA® Quadro® P5000 Mid-range 3D cards: Radeon™ Pro WX 7100 Radeon™ Pro WX 5100 Radeon™ Pro WX 4100 NVIDIA® Quadro® P4000 NVIDIA® Quadro® P2000 Entry 3D cards: Radeon™ Pro WX 3100 Radeon™ Pro WX 2100 NVIDIA® Quadro® P1000 NVIDIA® Quadro® P600 NVIDIA® Quadro® P400 Professional 2D cards: NVIDIA® NVS 310 NVIDIA® NVS 315 |
EXPANSION / CONNECTIVITY
| Expansion Slots | OverviewServicesTech Specs Processor Intel® Xeon® Processor W Family CPUs (Skylake-W) with up to 10 cores per processor and Intel® Advanced Vector Extensions, Intel® Trusted Execution Technology, Intel® AES New instructions, Optimized Intel® Turbo Boost and optional Intel® vPro™ technology Operating System (Dell Technologies recommends Windows 11 Pro for business.) Windows 11 Home (64 bit) Windows 11 Pro (64 bit) Windows 10 Pro (Windows 11 Pro License Included) Red Hat® Enterprise Linux® 7.3 Ubuntu Linux 16.04 NeoKylin 6.0 SP3 (China only) Video Card Support for 2 PCI Express® x16 Gen 3 graphics card2 - up to 600W with maximum of up to 2 x 300W double width graphics cards. High end 3D cards: Radeon™ Pro WX 9100 Radeon™ Pro SSG (future) NVIDIA® Quadro® GP100 NVIDIA® Quadro® P6000 NVIDIA® Quadro® P5000 Mid-range 3D cards: Radeon™ Pro WX 7100 Radeon™ Pro WX 5100 Radeon™ Pro WX 4100 NVIDIA® Quadro® P4000 NVIDIA® Quadro® P2000 Entry 3D cards: Radeon™ Pro WX 3100 Radeon™ Pro WX 2100 NVIDIA® Quadro® P1000 NVIDIA® Quadro® P600 NVIDIA® Quadro® P400 Professional 2D cards: NVIDIA® NVS 310 NVIDIA® NVS 315 Memory3 Four channel memory up to 256GB 2666MHz DDR4 ECC memory. 8 DIMM slots Note: Memory speed is dependent on specific Intel® Xeon Processor W Family processor installed. Hard Drive Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated. Up to 2 front accessible (hot plug) M.2 NVMe PCIe SSDs are supported in FlexBays on enabled PCIe chassis with integrated Intel® controller. NVMe RAID 0,1 option (Intel® RSTe vROC). Dell M.2 carrier with PCIe SSD for PCIe FlexBay available as customer kit. Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel® RSTe vROC). M.2 NVMe PCIe SSDs Up to 4 x 1TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 cards. Front FlexBay M.2 NVMe PCIe SSDs Up to 2 x 1TB drives 2.5” SATA SSD Up to 6 x 1TB drives 2.5” SAS SSD Up to 6 x 800GB drives 3.5” SAS 7200 RPM 12Gb/s Up to 5 x 4TB 2.5” SAS 10K RPM 12Gb/s Up to 6 x 1.8TB 2.5” SAS 15K RPM 12Gb/s Up to 6 x 900GB 2.5” Self Encrypting Drives 512GB 2.5” SED (OPAL/ FIPS (140-2) HDD M.2 PCIe SED SSD Ports Front 2 USB 3.1 Type A 2 USB 3.1 Type C 1 Universal Headphone Jack Up to 2 (future 4) PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs Internal 1 USB 2.0 1 USB 2.0 header (requires 3rd party splitter cable to support USB 2.0 Type A ports) 8 SATA @6Gb/s plus 1 SATA for optical Rear 6 USB 3.1 Type A 1 Serial 1 RJ45 Network 2 PS2 1 Audio Line out 1 Audio Line in/Microphone Slots All slots PCIe Gen 3 2 PCIe x16 1 PCIe x16 wired as x8 1 PCie x16 wired as x4 1 PCIe x16 wired as x1 1 PCI 32/33 |
NETWORKING
| Ports | Integrated one Gigabit Ethernet (Intel i218LM), supports Wake-on-LAN |
POWER
| Power Options | Power Supply (externally accessible, toolless, 80 Plus® Gold Certified, 90% efficient): 635W OR 425W |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | Height: 16.45'' (417.9 mm) | 2. Width: 6.94'' (176.5 mm) | 3. Depth: 20.4'' (518.3 mm) | Starting weight: 32 lb (15.9kg) |
| Weight | Starting weight: 32 lb (15.9kg) |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Windows 10 Pro |
