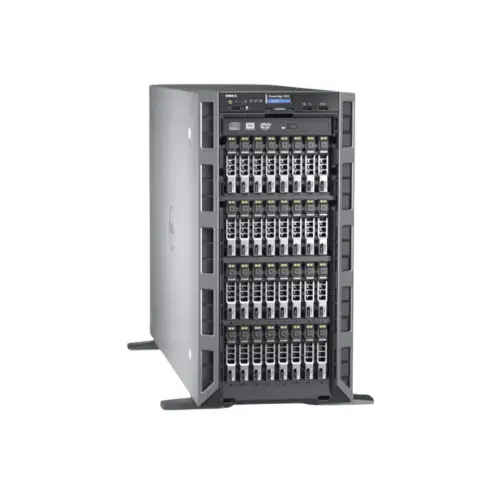

DELL PowerEdge T630 Tower Server
| Brand: DELL |
| Processor: Intel® Xeon® processor E5-2600 v4 product family Processor |
| Memory: 64GB DDR4 |
| Gpu: Integrated Display Adapter |
| Weight: Maximum weight: 41.8 kg |
| Dimensions: Height: 17.48 inches, Width: 10.63 inches, Depth: 27.90 inches |
| Cooling options: Active air cooling |
| Fans: Up to 6 hot-swappable fans |
Product Description
Specification
| Brand | Dell |
| Model | Dell PowerEdge T630 Tower Server |
| Part Number | DELL |
Product Type
| Product type | Server |
Form Factor
| Form Factor | Tower 5U Rackable |
Processor
| CPU Information | Intel® Xeon® processor E5-2600 v4 product family Processor sockets2 Internal interconnect2 x Intel Quick Path Interconnect (QPI) links; 6.4GT/s, 8.0GT/s, 9.6GT/s Cache2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 22 Chipset Intel C610 |
Memory
| Installed Memory | 64GB DDR4 |
| Memory Type | Up to 1.5TB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s |
Hard Disk
| Storage Option | I/O slots8 PCIe slots: • Slot 1: one x16 PCIe 3.0 for FL/FH card from CPU1 • Slot 2: one x8 PCIe 2.0 for FL/FH card from PCH (x4 lanes) • Slot 3: one x16 PCIe 3.0 for FL/FH card from CPU1 • Slot 4: one x8 PCIe 3.0 for HL/FH card from CPU2 • Slot 5: one x8 PCIe 2.0 for FL/FH card from CPU2 (x4 lanes) • Slot 6: one x16 PCIe 3.0 for FL/FH card from CPU2 • Slot 7: one x16 PCIe 3.0 for FL/FH card from CPU2 • Slot 8 (Internal PERC slot): one x8 PCIe 3.0 for HL/FH card from CPU1 RAID controllers Internal: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P Internal HBA (Non-RAID): HBA33 External HBAs (RAID): PERC H830 Drive baysInternal hard drive bay and hot-plug backplane: Up to 8 x 3.5" SAS, SATA, nearline SAS, SSD, PCIe SSD drives with optional flex bay Up to 18 x 3.5" SAS, SATA, nearline SAS, SSD drives Up to 16 x 2.5" SAS, SATA, nearline SAS, SSD, PCIe SSD drives with optional flex bay Up to 32 x 2.5" SAS, SATA, nearline SAS, SSD drives Hard drives hot-plug hard drive options: 2.5" SAS, SATA, nearline SAS, SSD, Express Flash PCIe SSD 3.5" SAS, SATA, nearline SAS, SSD Self-encrypting drives available |
| Installed Hard Disk | 3 x 600GB SAS Hard Drive |
GRAPHICS CONTROLLER
| Display Adapter | Integrated Display Adapter |
EXPANSION / CONNECTIVITY
| Expansion Slots | Slots 4 slots: 1x8 PCIe 3.0 (x16 connector) 1x4 PCIe 3.0 (x8 connector) 1x4 PCIe 3.0 (x8 connector) 1x1 PCIe 3.0 (x1 connector) |
NETWORKING
| Ports | Embedded NIC4 x 1GbE, 2 x 10+2GbE, 4 x 10GbE NDC |
POWER
| Power Options | Titanium efficiency 750W AC power supply Gold efficiency 1100 DC power supply Platinum efficiency 495W, 750W, 1100W, or 1600W AC power supply |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | Height: chassis base height - 430.3 mm/17.04 in With foot - 443.3 mm/17.45 in With wheel - 471.3 mm/18.55 in Width: chassis base width - 218 mm/8.58 in With foot - 304.5 mm/11.98 in Depth: front to rear wall (w/o bezel) - 542.2 mm/21.33 in front to PSU handle (w/o bezel) - 578.42 mm/22.77 in front to the rear wall (with bezel) - 558.6 mm/21.99 in front to PSU handle (with bezel) - 594.82 mm/23.41 in |
| Weight | Maximum weight: 41.8 kg (92.15 lb) for 2.5” hard drive chassis 51.0 kg (112.43 lb) for 3.5” hard-drive chassis |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Type Microsoft Windows 10 Professional 64-bit Edition OS Provided Microsoft Windows 10 Professional 64-bit Edition License Preinstalled OS Windows 10 |
