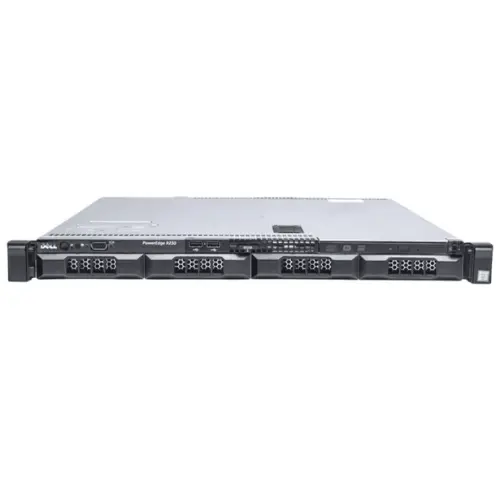

DELL PowerEdge R230 Rack Server
| Drive Options | 10K SAS HDD - 1.8TB, 7.2K SAS HDD - 2TB, 10K SAS HDD - 1.2TB |
| Brand | Dell |
| Operating System | Windows 10 Pro |
| Processor Make | Intel |
| Processor Series | Xeon |
| Processor Model | E3-1200 V5 |
| Memory Type | DDR4 |
| Memory Size | 32 GB |
| Cooling options | Heatsinks |
| Fans | 3 fans |
Product Description
Specification
| Brand | Dell |
| Model | Dell PowerEdge R230 Rack Server |
| Part Number | PowerEdge R230 |
Product Type
| Product type | Server |
Form Factor
| Form Factor | 1U Rackable |
Processor
| CPU Information | 1 processor from the following product families: Intel® Xeon® processor E3-1200 v5 product family |
Memory
| Installed Memory | 32GB DDR4 |
| Memory Type | Architecture: Up to 2400MT/s DDR4 DIMMs Memory Type: UDIMMs Memory Module Sockets: 4 Maximum RAM: Up to 64GB |
Hard Disk
| Storage Option | Storage 2.5” SATA 7.2K 2.5” nearline SAS 7.2K 2.5” 10K SAS HDDs 2.5” 15K SAS HDDs 2.5” SATA HDDs 3.5” Enterprise SATA 7.2K HDDs 3.5” nearline SAS 7.2K HDDs 3.5” 7.2K SATA entry drives Drive bays 2 x 3.5" cabled HDD 4 x 3.5" cabled HDD 4 x 3.5" hot-swap or 2.5" hot-swap in hybrid drive carrier |
| Installed Hard Disk | 3 x 300GB SAS Hard Drive |
GRAPHICS CONTROLLER
| Display Adapter | Integrated Display Adapter |
EXPANSION / CONNECTIVITY
| Expansion Slots | 5 total USB: Rear: 2 x USB 3.0 ports Front: 2 x USB 2.0 ports Internal: 1 x USB 3.0 port Slots 2 x PCIe 3.0 slots: x16 slot, full height (1x8 PCIe 3.0)+ x8 slot, low profile (1x4 PCIe 3.0) Chassis 2 x 3.5" cabled HDD 19.5" 1U chassis 4 x 3.5" cabled HDD 19.5" 1U chassis 4 x 3.5" Hot-Plug HDD 19.5" 1U chassis |
NETWORKING
| Ports | Broadcom® 5720 |
POWER
| Power Options | Titanium efficiency 750W AC power supply Gold efficiency 1100 DC power supply Platinum efficiency 495W, 750W, 1100W, or 1600W AC power supply |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | H: 42.8 mm (1.67 in), W: 434.0 mm (17.09 in), D: 495 mm (19.5 in) w/o ear, w/o bezel |
| Weight | Max weight: 10.6 kg (20.96 lb) |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Type Microsoft Windows 10 Professional 64-bit Edition OS Provided Microsoft Windows 10 Professional 64-bit Edition License Preinstalled OS Windows 10 |
