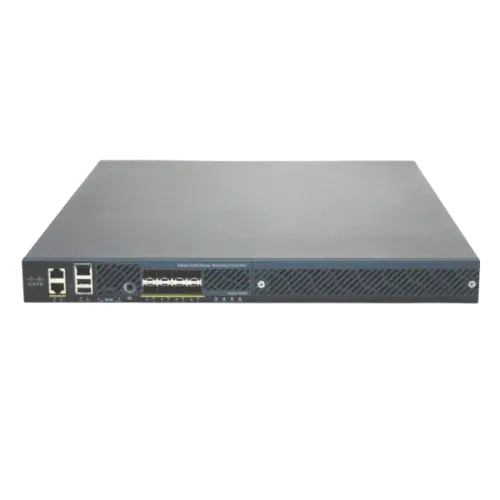

Cisco 5500 Series Wireless Controller
| Brand | Cisco |
| Device Model | AIR-CT5508-50-K9 |
| Device Type | Wireless Controller |
| Data Link Protocol | IEEE 802.3u |
| Power Supply | 115W |
| Form Factor | Rack-mountable - 1U |
Product Description
| Brand | Cisco Systems Inc |
| Model | AIR-CT5508-50-K9 |
| Part Number | AIR-CT5508-50-K9 |
General
| Device Type | Wireless controller |
| Interface (Buy) Type | Web-based: HTTP/HTTPS Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port Cisco Wireless Control System (WCS) |
Form Factor
| Form Factor | Rack-mountable - 1U |
EXPANSION / CONNECTIVITY
| Expansion Slots | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T. 1000BASE-SX, 1000-BASE-LH, IEEE 802. 1Q Vtagging, and IEEE 802.1AX Link Aggregation. |
| Interfaces | Wired/Switching/Routing |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | (WxDxH): 17.30 x 21.20 x 1.75 in. (440 x 539 x 44.5 mm |
| Weight | 20 lbs (9.1 kg) with 2 power supplies |
NETWORKING
| Ports | 8 x SFP uplinks |
| Connectivity Technology | Console ports: 10/100/1000 RJ-45 |
MISCELLANEOUS
| Mix Features | Rack Mounting Kit Optional MTBF 245,604 hours Compliant Standards TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A |
POWER
| Power Options | Temperature: Operating temperature: 32 to 104°F (0 to 40°C); Storage temperature: -13 to 158°F (-25 to 70°C) ● Humidity: Operating humidity: 10 95%, noncondensing. Storage humidity: up to 95% ● Input power: 100 to 240 VAC; 50/60 Hz; 1.05 A at 110 VAC, 115W Maximum; 0.523 A at 220 VAC, 115W Maximum; Test Conditions: Redundant Power Supplies, 40C, Full Traffic. ● Heat Dissipation: 392 Btu/hour at 110/220 VAC Maximum |
