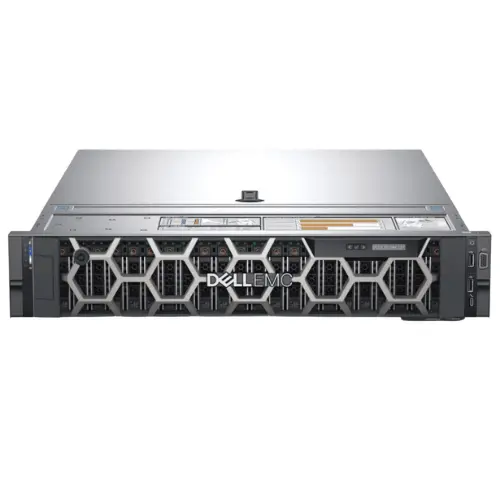

DELL PowerEdge R740xd Rack Server
| Brand: Dell |
| Processor: Intel Xeon |
| Memory: 64GB DDR4 |
| Gpu: Integrated Display Adapter |
| Weight: 28.6kg |
| Dimensions: Height: 3.4 inches, Width: 17.08 inches, Depth: 29.03 inches |
| Cooling options: active cooling system |
| Fans: 8 hot-plug fans. |
Product Description
Specification
| Brand | Dell |
| Model | Dell PowerEdge R740xd 24SFF Rack Server |
Product Type
| Product type | Server |
Form Factor
| Form Factor | 2U Rackable |
Processor
| CPU Information | Dual Intel® Xeon® 6138 Gold with up to 28 cores per processor |
Memory
| Installed Memory | 32GB DDR4 |
| Memory Type | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Up to 12 Intel® Optane™ DC persistent memory PMem, 6.14TB max (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only |
Hard Disk
| Storage Option | Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA Software RAID: S140 Boot Optimized StorageSubsystem (BOSS): HW RAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module1 |
| Installed Hard Disk | 2 x 600GB SAS Hard Drive |
GRAPHICS CONTROLLER
| Display Adapter | Integrated Display Adapter Accelerators Up to one single-width FPGA Up to three single-width GPU (NVIDIA T4) |
EXPANSION / CONNECTIVITY
| Expansion Slots | Network daughter card options 4 x 1GbE or 2 x 10GbE + 2 x 1GbE or 4 x 10GbE or 2 x 25GbE Front ports: 1 x Dedicated iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x USB 3.0 (optional), 1 x VGA Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x VGA Video card: 2 x VGA Riser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots |
NETWORKING
| Ports | Broadcom® 5720 |
POWER
| Power Options | Titanium 750W, Platinum 495W, 750W, 750W 240VDC,2 1100W, 1100W 380VDC2 600W, 2000W and 2400W, Gold 1100W -48VDC Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | Height: 86.8mm (3.4”) Width3: 434.0mm (17.08”) Depth3: 737.5mm (29.03”) |
| Weight | Weight: 28.6kg (63lbs.) |
OPERATING SYSTEM
| Pre Install Os | No OS |
